USING KUBECTL CLI
NODE

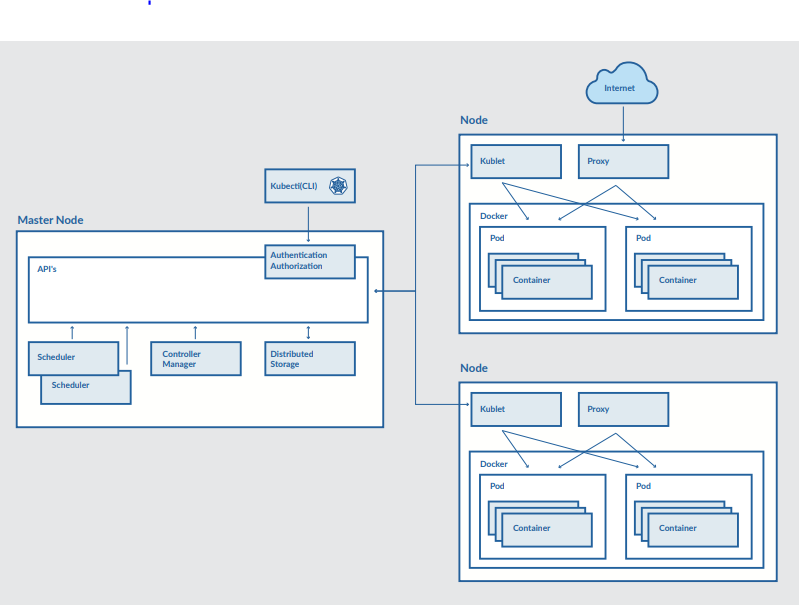

A Kubernetes cluster consists of one or more nodes managed by Kubernetes. The nodes are bare-metal servers, on-premises VMs, or VMs on a cloud provider. Every node contains a container runtime (for example, Docker Engine),
kubelet (responsible for starting, stopping, and managing individual containers by requests from the Kubernetes
control plane), and kube-proxy (responsible for networking and load balancing).
MASTER NODE
A Kubernetes cluster also contains one or more master nodes that run the Kubernetes control plane. The control plane
consists of different processes, such as an API server (provides JSON over HTTP API), scheduler (selects nodes to run
containers), controller manager (runs controllers, see below), and etcd (a globally available configuration store).
DASHBOARD AND CLI
A Kubernetes cluster can be managed via the Kubernetes Dashboard, a web UI running on the master node. The cluster can also be managed via the command line tool kubectl, which can be installed on any machine able to access the API server, running on the master node. This tool can be used to manage several Kubernetes clusters by specifying a context defined in a configuration file
KUBERNETES
BUILDING BLOCKS
Kubernetes provides basic mechanisms for the deployment, maintenance, and scaling of containerized applications. It
uses declarative primitives, or building blocks, to maintain the state requested by the user, implementing the transition
from the current observable state to the requested state.
A pod is the smallest deployable unit that can be managed by Kubernetes. A pod is a logical group of one or more containers that share the same IP address and port space. The main purpose of a pod is to support co-located processes, such as an application server and its local cache. Containers within a pod can find each other via localhost, and can also communicate with each other using standard inter-process communications like SystemV semaphores or POSIX shared memory. In other words, a pod represents a “logical host”. Pods are not durable; they will not survive scheduling failures or node failures. If a node where the pod is running dies, the pod is deleted. It can then be replaced by an identical pod, with even the same name, but with a new unique identifier (UID).
A label is a key/value pair that is attached to Kubernetes resource, for example, a pod. Labels
can be attached to resources at creation time, as well as added and modified at any later time
A label selector can be used to organize Kubernetes resources that have labels. An equality-based selector defines a condition for selecting resources that have the specified label value. A set-based selector defines a condition for selecting resources that have a label value within the specified set of values
A controller manages a set of pods and ensures that the cluster is in the specified state. Unlike manually created pods, the pods maintained by a replication controller are automatically replaced if they fail, get deleted, or are terminated. There are several controller types, such as replication controllers or deployment controllers.
A replication controller is responsible for running the specified number of pod copies (replicas) across the clusterA deployment defines a desired state for logical group of pods and replica sets. It creates new resources or replaces the existing resources, if necessary. A deployment can be updated, rolled
out, or rolled back. A practical use case for a deployment is to bring up a replica set and pods,
then update the deployment to re-create the pods (for example, to use a new image). Later,
the deployment can be rolled back to an earlier revision if the current deployment is not stable.
A service uses a selector to define a logical group of pods and defines a policy to access such logical groups. Because pods are not durable, the actual pods that are running may change. A client that uses one or more containers within a pod should not need to be aware of which specific pod it works with, especially if there are several pods (replicas).
There are several types of services in Kubernetes, including ClusterIP, NodePort, LoadBalancer. A ClusterIP service exposes pods to connections from inside the cluster. A NodePort service exposes pods to external traffic by forwarding traffic from a port on each node of the cluster to the container port. A LoadBalancer service also exposes pods to external traffic, as NodePort service does, however it also provides a load balancer.
USING LABELS AND SELECTORS FOR
FINE-GRAINED CONTROL
A Kubernetes controller, for example, uses a selector to define a set of managed pods so that pods in that set have the
corresponding label. A label is just a key/value pair that is attached to Kubernetes resources such as pods. Labels can
be attached to resources when they are created, or added and modified at any time. Each resource can have multiple
labels. For example
release: stable
environment: dev
environment = dev
environment != live
environment in (dev, test)
environment notin (live)
release = stable, environment = dev
The first two selectors have an equality-based requirement, the third and fourth selectors have a set-based requirement. The last selector contains the comma separator, which acts as a logical “AND” operator, so the selector defines a set of resources where the label “release” equals “stable” and the label “environment” equals “dev
ENVIRONMENT VARIABLES
Kubernetes injects a set of environment variables into pods for each active service. Such environment variables
contain the service host and port, for example:
MYSQL_SERVICE_HOST=10.0.150.150
MYSQL_SERVICE_PORT=3306
STORAGE BUILDING BLOCK
volume
A container file system is ephemeral: if a container crashes, the changes to its file system are lost. A volume is defined at the pod level, and is used to preserve data across container crashes. A volume can be also used to share data between containers in a pod. A volume has the same lifecycle as the the pod that encloses it—when a pod is deleted, the volume is deleted as well. Kubernetes supports different volume types, which are implemented as plugins.
persistent volume
A persistent volume represents a real networked storage unit in a cluster that has been provisioned by an administrator. Persistent storage has a lifecycle independent of any individual pod. It supports different access modes, such as mounting as read-write by a single node, mounting as read-only by many nodes, and mounting as read-write by many nodes. Kubernetes supports different persistent volume types, which are implemented as plugins. Examples of persistent volume types include AWS EBS, vSphere volume, Azure File, GCE Persistent Disk,
CephFS, Ceph RBD, GlusterFS, iSCSI, NFS, and Host Path.
persistent volume claim
A persistent volume claim defines a specific amount of storage requested and specific access modes. Kubernetes finds a matching persistent volume and binds it with the persistent volume claim. If a matching volume does not exist, a persistent volume claim will remain unbound indefinitely. It will be bound as soon as a matching volume become available
IMPERATIVE VS. DECLARATIVE ORCHESTRATION
Before getting to the practical steps of the Kubernetes
deployment, it’s important to understand the key
approaches to orchestration.
The classic imperative approach for managing software involves several steps or tasks, some of which are manual.
When working in a team, it is usually required that these steps be documented, and, in an ideal case, automated.
Preparing good documentation for a classic imperative administrative procedure and automating these steps can be non-trivial tasks, even if each of the steps is simple.
A declarative approach for administrative tasks is intended to solve such challenges. With a declarative
approach, an administrator defines a target state for a system (application, server, or cluster). Typically, a domain-specific language (DSL) is used to describe the target state. An administrative tool, such as
Kubernetes, takes this definition as an input and takes care of how to achieve the target state from the
current observable state.
HANDS-ON:
Minikube is an ideal tool for getting started with Kubernetes on a single computer. It enables running of a single-node Kubernetes cluster in a virtual machine.
It can be used on GNU/Linux or OS X and requires VirtualBox, KVM (for Linux), xhyve (OS X), or VMware Fusion (OS X) to be installed on your computer. Minikube creates a new virtual machine with GNU/Linux, installs and configures Docker and Kubernetes, and finally runs a Kubernetes cluster
INSTALLATION
1. Install the kubectl command line tool locally:
$ curl -Lo kubectl \
http://storage.googleapis.com/kubernetes-release/\
release/v1.3.0/bin/linux/amd64/kubectl \
&& chmod +x kubectl \
&& sudo mv kubectl /usr/local/bin/
2. Next, install the KVM driver:
$ sudo curl -L \
https://github.com/dhiltgen/docker-machine-kvm/\
releases/download/v0.7.0/docker-machine-driver-kvm \
-o /usr/local/bin/docker-machine-driver-kvm
$ sudo chmod +x /usr/local/bin/docker-machine-driver-kvm
3. Install Minikube:
$ curl -Lo minikube \
https://storage.googleapis.com/minikube/\
releases/v0.6.0/minikube-linux-amd64 \
&& chmod +x minikube \
&& sudo mv minikube /usr/local/bin
4. Start the Minikube cluster
$ minikube start --vm-driver=kvm
Starting local Kubernetes cluster...
Kubernetes is available at https://192.168.1.113:8443.
Kubectl is now configured to use the cluster
The Kubernetes cluster is up and running.
Let’s start with a simple deployment using an existing image
$ kubectl run hello-minikube \
--image=gcr.io/google_containers/echoserver:1.4 \
--port=8080
deployment “hello-minikube” created
$ kubectl expose deployment hello-minikube --type=NodePort
service “hello-minikube” exposed
5. Check that the pod is up and running
$ kubectl get pod
NAME READY STATUS RESTARTS AGE
hello-minikube-24335344028-ouxw8 1/1 Running 0 5m
“Running” should appear in the STATUS field. If “ContainerCreating” appears instead,
wait a few moments, then repeat the last command.
6. Check that the service works
$ curl $(minikube service hello-minikube --url)
CLIENT VALUES:
client_address=172.17.0.1
command=GET
real path=/
query=nil
request_version=1.1
request_uri=http://192.168.42.213:8080/
SERVER VALUES:
server_version=nginx: 1.10.0 - lua: 10001
HEADERS RECEIVED:
accept=*/*
host=192.168.42.213:31759
user-agent=curl/7.35.0
BODY:
-no body in request
7. Execute the following command to open the Kubernetes
Dashboard in your web browser
$ minikube dashboard
8. To stop the cluster (shut down the virtual machine and
preserve its state), execute the following command
$ minikube stop
Stopping local Kubernetes cluster...
Stopping “minikubeVM”......
9. To start the cluster again and restore it to the previous state,
execute the following command
$ minikube start --vm-driver=kvm/
10. To delete the cluster (delete the virtual machine and its state),
execute the following command
$ minikube delete
Note:
There are other open-source tools, such as kubeadm,
that simplify installation of Kubernetes cluster in public clouds, on-premises virtual machines, and bare-metal servers. However, there are still many things that are out of scope. For example, you still need a reliable distributed block or file storage,you still need to think about HA, scalability, networking and security. Sometimes, it is simpler to use Kubernetes as a Service.
LOGGING
Basic logging in Kubernetes behaves much like logging in Docker. There is a kubectl logs command that will show you all the information written to stdout and stderr for a given container in a pod. If a pod has only one container, there is no need to specify it explicitly, however when a pod has several containers we need to add -c container to the end of the command. As with Docker, we can opt to follow logs, to reduce the number of recent lines with --tail and we can filter them by date. Unlike Docker, Kubernetes enables us to check the logs of a container that crashed using the --previous option.
DEDICATED AGENT RUNNING ON EVERY NODE
In this approach, a logging agent is run on every node, preferably through a DeamonSet replica. A
popular choice in this space is fluentd. It can be configured with various backends among which are
Google Cloud Platform and Elasticsearch
DEDICATED CONTAINER INSIDE A POD
check them separately with kubectl
logs $podname -c access-log and kubectl logs $podname -c error-log
DIRECT LOGGING FROM AN APPLICATION
using kubectl logs. In most cases, this approach is discouraged.
MONITORING
As Kubernetes containers are actually Linux processes, we can use our favourite tools to monitor
cluster performance. Basic tools, such as top or kubectl top, will behave as expected. It’s also
possible to use solutions that are dedicated to Kubernetes. One such solution is Heapster. Heapster
aggregates events and data from across the cluster. It runs as a pod in system namespace. Discovery
and querying of resources is done automatically with data coming from a kubelet managing node.
NOTE:
indentation need to do manually while working with every yaml file , otherwise error will come
WORKING WITH MULTIPLE CLUSTERS
So far, we have used kubectl to connect to only one cluster created by Minikube. But kubectl can
be configured to use multiple clusters and multiple contexts to connect to them. To check available
contexts, we use kubectl config get-contexts.
We can confirm that only one context and only one cluster is defined by kubectl config view.
It should look like this:
apiVersion: v1
clusters:
- cluster:
certificate-authority: $HOME/.minikube/ca.crt
server: https://192.168.99.100:8443
name: minikube
contexts:
- context:
cluster: minikube
user: minikube
name: minikube
kind: Config
preferences: {}
users:
- name: minikube
user:
client-certificate: $HOME/.minikube/apiserver.crt
client-key: $HOME/.minikube/apiserver.key/value
The config file used by kubectl is stored at ~/.kube/config. We can edit it with a text editor and
add another cluster, context and user. When ready, kubectl config get-contexts should show
our newly added context without marking it as current. This is the desired state
apiVersion: v1
clusters:
- cluster:
certificate-authority: $HOME/.minikube/ca.crt
server: https://192.168.99.100:8443
name: minikube
- cluster:
certificate-authority: $HOME/.minikube/ca.crt
server: https://192.168.99.100:8443
name: secondkube
contexts:
- context:
cluster: minikube
user: minikube
name: minikube
- context:
cluster: secondkube
user: secondkube
name: secondkube
current-context: secondkube
kind: Config
preferences: {}
users:
- name: minikube
user:
client-certificate: $HOME/.minikube/apiserver.crt
client-key: $HOME/.minikube/apiserver.key
- name: secondkube
user:
client-certificate: $HOME/.minikube/apiserver.crt
client-key: $HOME/.minikube/apiserver.key
To switch context, we use kubectl config use-context secondkube. We can verify the
switch was successful again with kubectl config get-contexts. The marker for current should
have moved to the new context. All kubectl commands from now on will be executed in a selected
context (which in our example is exactly the same as the first one).
DEPLOYING AN APPLICATION
we deploy the WordPress content management system with a MySQL backend. It is a classic two-tier
application, where the first tier is the application server (WordPress) that uses the second tier for data persistence (MySQL).
STEP 1. CREATE A KUBERNETES SECRET
As discussed above, Kubernetes secrets allow users to pass sensitive information, such as
passwords, database credentials, to containers. In the first step, we need to define a Kubernetes
secret that contains a database name, user, and password. It should also contain the root
password for MySQL.
Before creating a secret, we need to encode such information in Base64 format. Let’s assume we
want to use the following values in our application:
• “app-db” as a database name
• “app-user” as a database user name
• “app-pass” as a database password
• “app-rootpass” as a database root password
Note that we need to provide a database root password to allow WordPress to create the
required database. To encode these values to Base64 format, we can use the standard base64
utility that is available in almost all Linux distributions:
$ echo -n “app-db” | base64
YXBwLRi
$ echo -n “app-user” | base64
YXBwLXVzZXI=
$ echo -n “app-pass” | base64
YXBwLXBc3M=
$ echo -n “app-rootpass” | base64
YXBwLXJvb3wYXN
We use the “-n” option to make sure that the new line symbol (“\n”) is not included in the
encoded value.
To define a new Kubernetes secret, create a new file, app-secret.yaml, with the following
content:
apiVersion: v1
kind: Secret
metadata:
name: app-secret
type: Opaque
data:
dbname: YXBwLRi
dbuser: YXBwLXVZXI=
dbpass: YXBwLXBhc3M=
dbrootpass: YXBwLXJv3RwYXN
In the app-secret.yaml file, we specified the required Kubernetes API version and the
data type to let Kubernetes know that we are defining a secret. In addition, the file defines four
keys (dbname, dbuser, dbpass, dbrootpass) with the corresponding values we encoded
above. Now we can create our Kubernetes secret using its definition in the app-secret.yaml file:
$ kubectl create -f app-secret.yaml
secret “app-secret” created
$ kubectl get secrets
NAME TYPE DATA AGE
app-secrets Opaque 4 2m
STEP 2. CREATE A PERSISTENT VOLUME
Next, we will create a Kubernetes persistent volume to provide the underlying storage for our
MySQL database. To define a new persistent volume, create a new file, app-pv.yam, with the
following content
apiVersion: v1
kind: PersistentVolume
metadata:
name: app-pv
labels:
vol: mysql
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
hostPath:
path: /data/app
$ sudo mkdir -p /data/app
$ kubectl create -f app-pv.yaml
persistentvolume “app-pv” created
Let’s verify that the persistent volume is available
$ kubectl describe pv/app-pv/app-pv
STEP 3. CLAIM A PERSISTENT VOLUME
For MySQL, we need to claim our previously created persistent volume. Create a new file, apppvc.yaml, with the following content:
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: app-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
selector:
matchLabels:
vol: mysql
$ kubectl create -f app-pvc.yaml
persistentvolumeclaim “app-pvc” created
STEP 4. DEPLOY MYSQL
Now we will create a new deployment for MySQL using the existing Docker image. Create a new
file, mysql-deployment.yaml, with the following content
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: mysql-deployment
spec:
replicas: 1
template:
metadata:
labels:
app: mysql
spec:
containers:
- name: mysql
image: “mysql:5.6”
ports:
- containerPort: 3306
volumeMounts:
- mountPath: “/var/lib/mysql”
name: mysql-pd
env:
- name: MYSQL_ROOT_PASSWORD
valueFrom:
secretKeyRef:
name: app-secret
key: dbrootpass
- name: MYSQL_USER
valueFrom:
secretKeyRef:
name: app-secret
key: dbuser
- name: MYSQL_PASSWORD
valueFrom:
secretKeyRef:
name: app-secret
key: dbpass
- name: MYSQL_DATABASE
valueFrom:
secretKeyRef:
name: app-secret
key: dbname
volumes:
- name: mysql-pd
persistentVolumeClaim:
claimName: app-pvc
$ kubectl create -f mysql-deployment.yaml
deployment “mysql-deployment” created
$ kubectl get pv
NAME CAPACITY ACCESSMODES STATUS CLAIM
REASON AGE
app-pv 1Gi RWO Bound default/app-pvc 10m
$ kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESSMODES AGE
app-pvc Bound app-pv 0 5m
$ kubectl get deployments
NAME DESIRED CURRENT UP-TO-DATE AVAILABLE
AGE
mysql-deployment 1 1 1 1
3m
STEP 5. CREATE A SERVICE FOR MYSQL_DATABASE
apiVersion: v1
kind: Service
metadata:
name: mysql-service
spec: ports:
- port: 3306
protocol: TCP
targetPort: 3306
selector:
app: mysql
$ kubectl create -f mysql-service.yaml
service “mysql-service” created
Let’s verify that the service is created and correctly mapped
$ kubectl describe svc/mysql-service
Name: mysql-service
Namespace: default
Labels: <none>
Selector: app=mysql
Type: ClusterIP
IP: ...
Port: <unset> 3306/TCP
Endpoints: 172.17.0.2:3306
Session Affinity: None
No events.
$ kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP
mysql-deployment-... 1/1 RUNNING 0 30m 172.17.0.2
STEP 6. DEPLOY WORDPRES
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
name: wordpress-deployment
spec:
replicas: 2
strategy:
type: RollingUpdate
template:
metadata:
labels:
app: wordpress
spec:
containers:
- name: “wordpress”
image: “wordpress:4.5-apache”
ports:
- containerPort: 80
env:
- name: WORDPRESS_DB_HOST
value: mysql-service
- name: WORDPRESS_DB_USER
valueFrom:
secretKeyRef:
name: app-secrets
key: dbuser
- name: WORDPRESS_DB_PASSWORD
valueFrom:
secretKeyRef:
name: app-secret
key: dbpass
- name: WORDPRESS_DB_NAME
valueFrom:
secretKeyRef:
name: app-secret
key: dbname
$ kubectl create -f wordpress-deployment.yaml
deployment “wordpress-deployment” created
$ kubectl get deployments
NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE
mysql-deployment 1 1 1 1 45m
wordpress-deployment 2 2 2 2 5m
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
mysql-deployment-... 1/1 Running 0 45m
wordpress-deployment-... 1/1 Running 0 6m
wordpress-deployment-... 1/1 Running 0 8m
$ kubectl exec -it wordpress-deployment-... bash
Let’s check that the MySQL service can be resolved within the pod using the service’s name:
root@wordpress# getent hosts mysql-service
10.0.0.219 mysql-service.default.svc.cluster.local
The above output verifies that mysql-service can be resolved through DNS to the ClusterIP
address that was assigned to the MySQL service (your IP address may be different).
Now let’s verify that WordPress is properly configured
root@wordpress# grep -i db /var/www/html/wp-config.php
define(‘DB_NAME’, ‘app-db’);
define(‘DB_USER’, ‘app-user’);
define(‘DB_PASSWORD’, ‘app-pass’);
define(‘DB_HOST’, ‘mysql-service’);
...
STEP 7. CREATE A SERVICE FOR WORDPRESS
apiVersion: v1
kind: Service
metadata:
name: wordpress-service
labels:
app: wordpress
spec:
type: NodePort
ports:
- port: 80
nodePort: 30080
selector:
app: wordpress
$ kubectl create -f wordpress-service.yaml
service “wordpress-service” created
$ kubectl describe svc/wordpress-service
Name: wordpress-service
Namespace: default
Labels: app=wordpress
Selector: app=wordpress
Type: NodePort
IP: ...
Port: <unset> 80/TCP
NodePort: <unset> 30080/TCP
Endpoints: ...:80,...:80,...:80
Session Affinity: None
No events
STEP 8. TEST THE WORDPRESS APPLICATION
Open your browser and navigate to http://
where
The following diagram shows all of the Kubernetes building blocks we defined and created for
our application
NOTE:
indentation need to do manually while working with every yaml file , otherwise error will come
